A Guide to Generating QC Documents

Source: vignettes/qc-documents.Rmd

This vignette provides detailed documentation and usage examples for generating QC summary documents with the the qctools package. The functions, renderQCSummary() and renderQCReport(), generate documents containing QC summary tables. These are intended to aid in quality control and prioritizing QC resourcing.

Table of Contents

  • renderQCSummary(): Generates a document with summary tables of outstanding QC information
  • renderQCReport(): Generates a document that provides the QC status of files on a project

renderQCSummary()

The renderQCSummary() generates a QC summary based on scripts within a given project and renders it into a PDF report. This PDF contains multiple summaries, including:

  • files with outstanding QC that have been added to the QClog.csv file
  • recently modified files that have not been added to the QClog.csv file

Usage

Outstanding QC Summary

Output:

file status last author Previous QCers
script/data-assembly.R Assigned - needs QC Jane Doe none
script/examp-txt.txt Modified - needs QC John Smith Alice Johnson
script/pk/load-spec.R Modified - needs QC John Smith Jane Doe, Alice Johnson

Each file that appears in this table requires QC. The status Assigned - needs QC indicates that the file has never been previous QC’d. Modified - needs QC indicates that the file has been QC’d, but has since been updated. A list of previous QCers is included for these files.

Recently Modified Files Summary

Output:

file last author Days since last edit
script/eda-tables.R Jane Doe 1
script/eda-figures.R Alice Johnson 8
script/pk/check-sum.yaml Alice Johnson 20

This summary is intended to identify files that have been recently modified (within the last 20 days) but have not been assigned in the QClog.csv file.

renderQCReport()

The renderQCReport() generates a QC status summary of all files in the QClog.csv file and renders it into a PDF report.

Usage

Output:

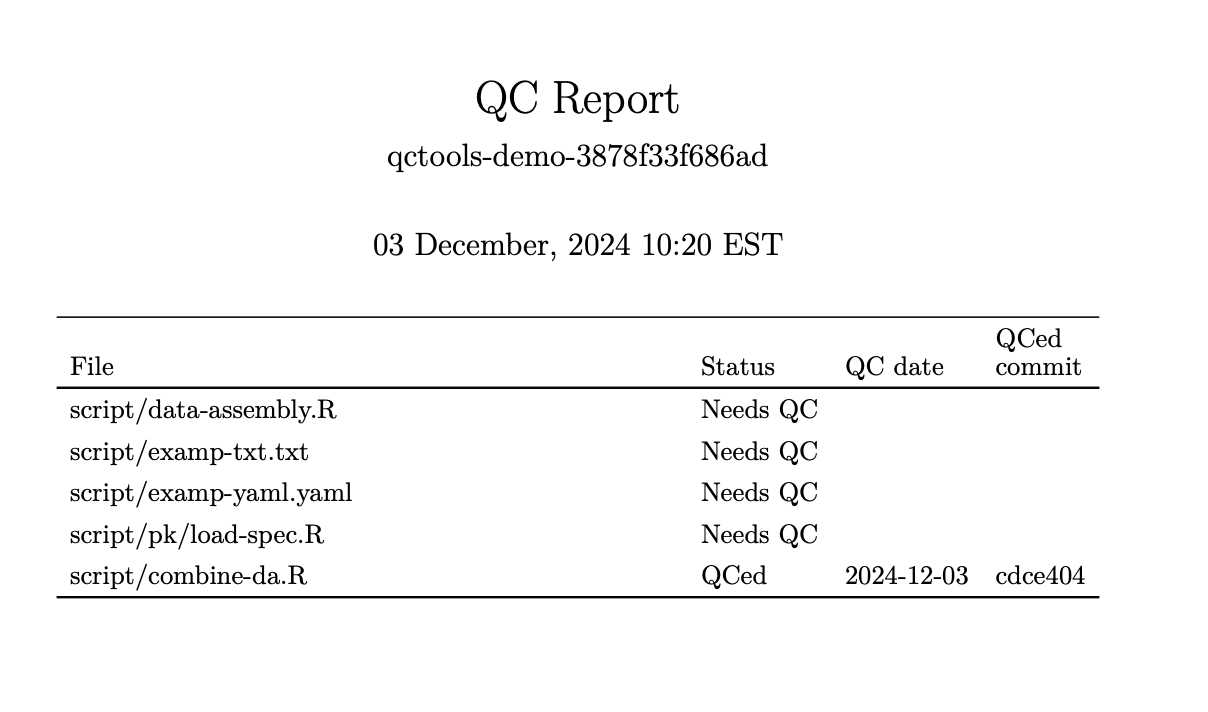

Output of renderQCReport(): The project name and date/time the report was generated is shown above the summary table. The table shows the QC status of all files in the QClog.csv file. If a file is up to date with QC, the date and commit hash of when the QC was completed is shown.
Output of renderQCReport(): The project name and date/time the report was generated is shown above the summary table. The table shows the QC status of all files in the QClog.csv file. If a file is up to date with QC, the date and commit hash of when the QC was completed is shown.

Additional Notes

  • Saving documents: Users can save either QC document to a specific directory using the .output_dir parameter.
