Set and manage aliases to certain canonical names used by pmplots

Source: R/aliases.R

Some column names are assumed when calling pmplots plotting functions. These names are generated by the functions listed in pm_axis_functions. When these functions are invoked to select the data columns used for plotting, hard-coded assumptions by pmplots are made (e.g., time is TIME). When user-defined aliases are set, these aliases are used in place of the canonical names assumed by pmplots. Aliases are only applied when these pm_axis_functions are invoked to select the data column. See pm_col_id() for aliasing ID through a global R option.

See Examples.

  • pm_aliases() prints the currently active aliases.

  • pm_set_aliases() registers one or more aliases mapping a data column name to a canonical pmplots column name.

  • pm_clear_aliases() removes all registered aliases.

  • pm_show_canonical() returns the canonical column names that can be aliased.

pm_aliases()

pm_set_aliases(...)

pm_clear_aliases()

pm_show_canonical()

Arguments

...

alias_name = canonical_name pairs, where the right-hand side can be quoted or unquoted.

Examples


# The canonical name for time is `TIME`
pm_axis_time()
#> [1] "TIME//Time {xunit}"

# If you want to redirect to `TAFD` whenever the canonical name is `TIME`
# you can set an alias
pm_set_aliases(TAFD = TIME)

# Now, whenever canonical time is requested, pmplots redirects to `TAFD`
pm_axis_time()
#> [1] "TAFD//Time {xunit}"

# See current aliases
pm_aliases()
#> • data TAFD --> TIME in pmplots

# Clear aliases
pm_clear_aliases()

# There is no canonical name for `WT`, so this will fail
try(pm_set_aliases(WEIGHT = WT))
#> Error in pm_set_aliases(WEIGHT = WT) :
#>   only certain columns can be aliased; see `pm_show_canonical()`.

# Because this call does not invoke `pm_axis_time`, no alias redirection
# will occur; in this case the user should compute the alias and provide
# the requested column name (e.g. `TAFD`) in the call.
data <- pmplots_data_obs()

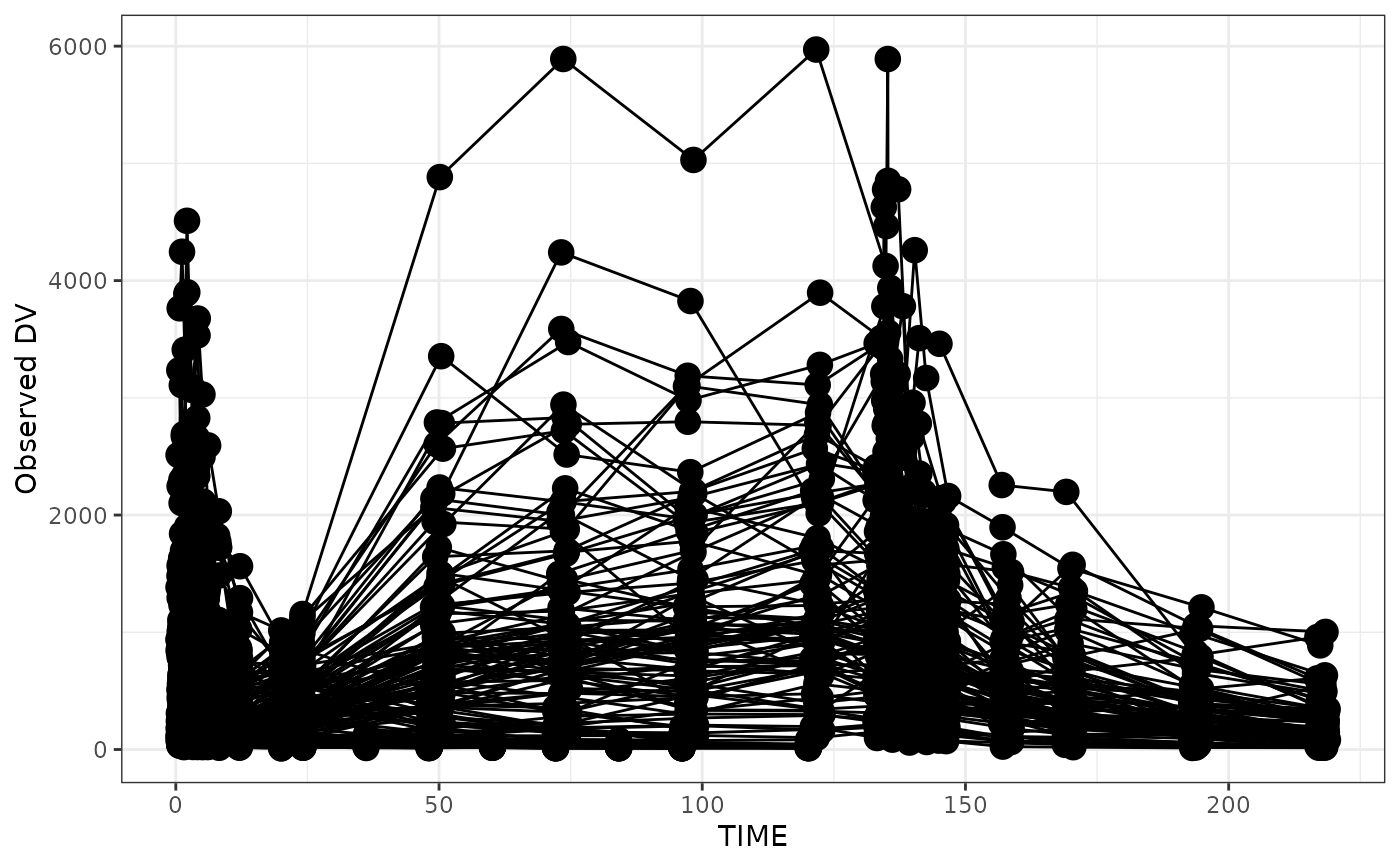

dv_time(data, x = "TIME")
