Introduction

This is a vignette to help you become familiar with using define_boot_table() and format_boot_table(). For more information how to effectively integrate pmparams into your workflow, visit the MeRGE Expo: Parameter Tables.

Data requirements

Before we get started, lets set some key variables we’ll use throughout this tutorial, including the original bbr model and the bootstrap run:

# Model Directory
model_dir <- system.file("model/nonmem", package = "pmparams")
# Parameter Key
param_key <- file.path(model_dir, "pk-parameter-key-new.yaml")
# Model we're bootstrapping
orig_mod <- bbr::read_model(file.path(model_dir, "106"))
# Bootstrap model object
boot_run <- bbr::read_model(file.path(model_dir, "106-boot"))

Parameter key

We begin by creating a parameter key that tells R how to interpret your parameter values. Our code requires four arguments for each parameter:

  • abb - abbreviation for model parameter (we use latex coding)
  • desc - parameter description to appear
  • panel - the table panel the parameter should appear under
  • trans - definition of how the parameter should be transformed

If you have a model that uses theta in the $ERROR block, make sure the theta panel label is “RV” so the pmparams functions can properly identify it.

We recommend using a parameter key yaml, but pmparams works for parameter key tibbles.

A more detailed walk-through of generating the parameter key is available here: MeRGE Expo: Creating a Parameter Key .

param_key_lst <- yaml::yaml.load_file(param_key)
head(unlist(param_key_lst))
#>                             THETA1.abb                            THETA1.desc
#>                             "KA (1/h)" "First order absorption rate constant"
#>                           THETA1.panel                           THETA1.trans
#>                               "struct"                             "logTrans"
#>                             THETA2.abb                            THETA2.desc
#>                             "V2/F (L)"              "Apparent central volume"

Creating a parameter table bootstrap estimates

Define & format bootstrap parameter table

Parameter tables of bootstrap estimates are created by first passing your bootstrap estimates to the pmparams define_boot_table() function, which handles both the joining and creation of new confidence interval related columns.

  • Note: this uses dplyr::inner_join, so only parameters included in the model output and parameter key will be kept in the table. This was done so that if your base and final model used the same structural THETAs and random parameters, the same parameter key could be used for both. The additional covariate THETAs defined in the parameter key YAML would simply be ignored when creating the base model parameter table.

Bootstrap runs can be performed directly in bbr (version 1.11.0 or later), which tracks a bootstrap model object (boot_run). Once executed, the bbr::bootstrap_estimates() function can be used to easily read those estimates into a data frame that you can subsequently pass to the pmparams define_boot_table() function.

Bootstrap parameter estimates argument

To support use cases outside of bbr, this function allows you to pass in those bootstrap estimates in a couple of formats:

  • A path to a csv (file.path(model_dir, "boot/data/boot-106.csv"))
  • A data.frame (like what’s returned from bbr::bootstrap_estimates())
# Also accepted
 # boot_ests <- file.path(model_dir, "boot/data/boot-106.csv")
 # boot_ests <- readr::read_csv(file.path(model_dir, "boot/data/boot-106.csv"))
boot_ests <- bbr::bootstrap_estimates(boot_run)

boot_df <- define_boot_table(
  .boot_estimates = boot_ests,
  .key = param_key
)

head(boot_df)
#> # A tibble: 6 × 23
#>   parameter_names  lower  value  upper ci_level name   abb     desc  panel trans
#>   <chr>            <dbl>  <dbl>  <dbl>    <dbl> <chr>  <chr>   <chr> <chr> <chr>
#> 1 THETA1           1.39   1.58   1.80        95 THETA1 KA (1/… Firs… stru… logT…
#> 2 THETA2          58.9   62.0   65.7         95 THETA2 V2/F (… Appa… stru… logT…
#> 3 THETA3           3.09   3.26   3.46        95 THETA3 CL/F (… Appa… stru… logT…
#> 4 THETA4          65.7   68.2   70.2         95 THETA4 V3/F (… Appa… stru… logT…
#> 5 THETA5           3.39   3.64   3.88        95 THETA5 Q/F (L… Appa… stru… logT…
#> 6 THETA6           0.403  0.483  0.568       95 THETA6 CL/F ~… eGFR… cov   none
#> # ℹ 13 more variables: transTHETA <lgl>, THETAERR <lgl>, TH <lgl>, OM <lgl>,
#> #   S <lgl>, LOG <lgl>, LOGIT <lgl>, lognormO <lgl>, Osd <lgl>, logitOsd <lgl>,
#> #   propErr <lgl>, addErr <lgl>, addErrLogDV <lgl>

Now we perform some house-keeping based on the new parameter key information and format the values for the report using format_boot_table().

boot_df <- format_boot_table(boot_df)

head(boot_df)
#> # A tibble: 6 × 4
#>   abb         desc                                  boot_value boot_ci_95
#>   <chr>       <chr>                                 <chr>      <chr>
#> 1 KA (1/h)    First order absorption rate constant  1.58       1.39, 1.80
#> 2 V2/F (L)    Apparent central volume               62.0       58.9, 65.7
#> 3 CL/F (L/h)  Apparent clearance                    3.26       3.09, 3.46
#> 4 V3/F (L)    Apparent peripheral volume            68.2       65.7, 70.2
#> 5 Q/F (L/h)   Apparent intercompartmental clearance 3.64       3.39, 3.88
#> 6 CL/F ~ eGFR eGFR effect on CL/F                   0.483      0.403, 0.568

Combine bootstrap and original model parameter estimates

Start by creating a parameter table for your original model, and then join it to the formatted bootstrap table (boot_df) we created above:

param_df <- orig_mod %>%
  define_param_table(param_key, .ci = 95) %>%
  format_param_table()


boot_param_df <- left_join(param_df, boot_df, by = c("abb", "desc"))
head(boot_param_df)
#> # A tibble: 6 × 9
#>   type             abb   greek desc  value shrinkage ci_95 boot_value boot_ci_95
#>   <chr>            <chr> <glu> <chr> <glu> <chr>     <chr> <chr>      <chr>
#> 1 Structural mode… KA (… $\ex… Firs… 1.57  -         1.38… 1.58       1.39, 1.80
#> 2 Structural mode… V2/F… $\ex… Appa… 62.1  -         58.8… 62.0       58.9, 65.7
#> 3 Structural mode… CL/F… $\ex… Appa… 3.26  -         3.08… 3.26       3.09, 3.46
#> 4 Structural mode… V3/F… $\ex… Appa… 68.1  -         65.6… 68.2       65.7, 70.2
#> 5 Structural mode… Q/F … $\ex… Appa… 3.63  -         3.39… 3.64       3.39, 3.88
#> 6 Covariate effec… CL/F… $\th… eGFR… 0.484 -         0.40… 0.483      0.403, 0.…
# Define bootstrap CI footnote
footBoot <- boot_notes(.ci = 95, .n_run = nrow(boot_ests))

# Render table
tab <- boot_param_df %>%
  make_boot_pmtable(.pmtype = "fixed") %>%
  st_center(desc = col_ragged(5.5), abb = "l") %>%
  st_notes(param_notes()$ci) %>%                   # add abbreviations
  st_notes_str() %>%                               # collapse all abbreviations to a string
  st_notes(param_notes()$logTrans, footBoot$boot_ci) %>%   # customize other notes
  st_notes_detach(width = 1) %>%
  st_files(output = "final-param-fixed-boot.tex") %>%

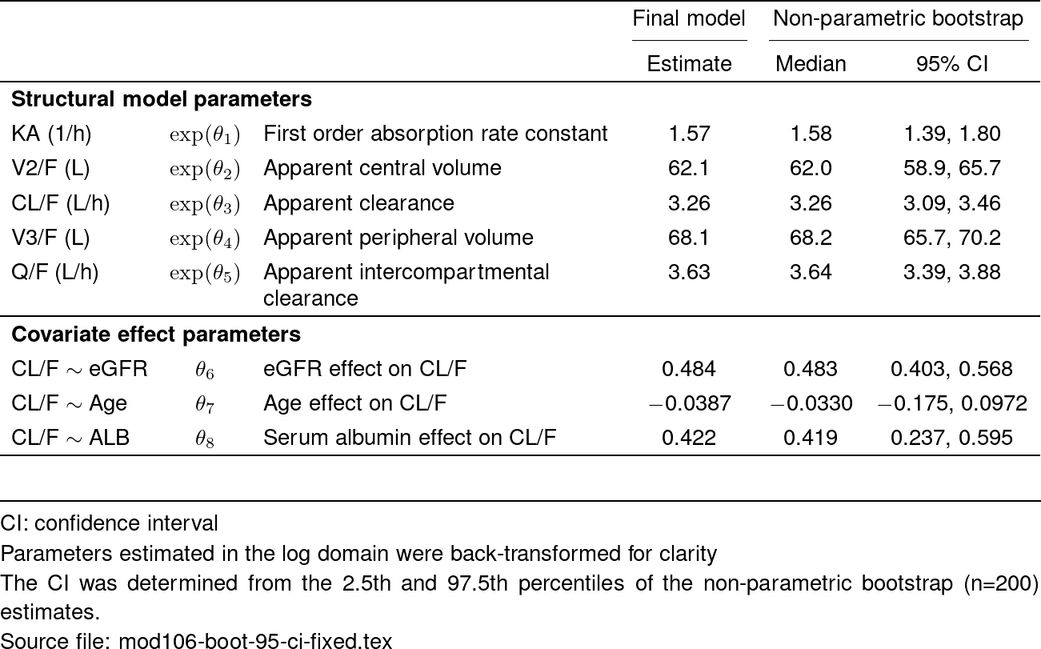

  stable(output_file = "deliv/mod106-boot-95-ci-fixed.tex")

tab_out <- stable_save_image(tab, format = "png")
st_image_show(tab_out, width = 0.8)

Complex example

To illustrate the flexibility of make_boot_pmtable(), we’ll use a more complex example where we include two confidence intervals:

# Two confidence intervals
boot_df <- boot_ests %>%
  define_boot_table(param_key, .ci = 95) %>%
  format_boot_table()

boot_df2 <- boot_ests %>%
  define_boot_table(param_key, .ci = 90) %>%
  format_boot_table()


boot_param_df <- param_df %>%
  left_join(boot_df) %>%
  left_join(boot_df2)
tab <- boot_param_df %>%
  make_boot_pmtable(.pmtype = "fixed") %>%
  st_center(desc = col_ragged(5.5), abb = "l") %>%
  st_notes(param_notes()$ci) %>%         # add abbreviations
  st_notes_str() %>%                     # collapse all abbreviations to a string
  st_notes(param_notes()$logTrans) %>%   # customize other notes
  st_notes_detach(width = 1) %>%
  st_files(output = "final-param-fixed-boot-multi-ci.tex") %>%

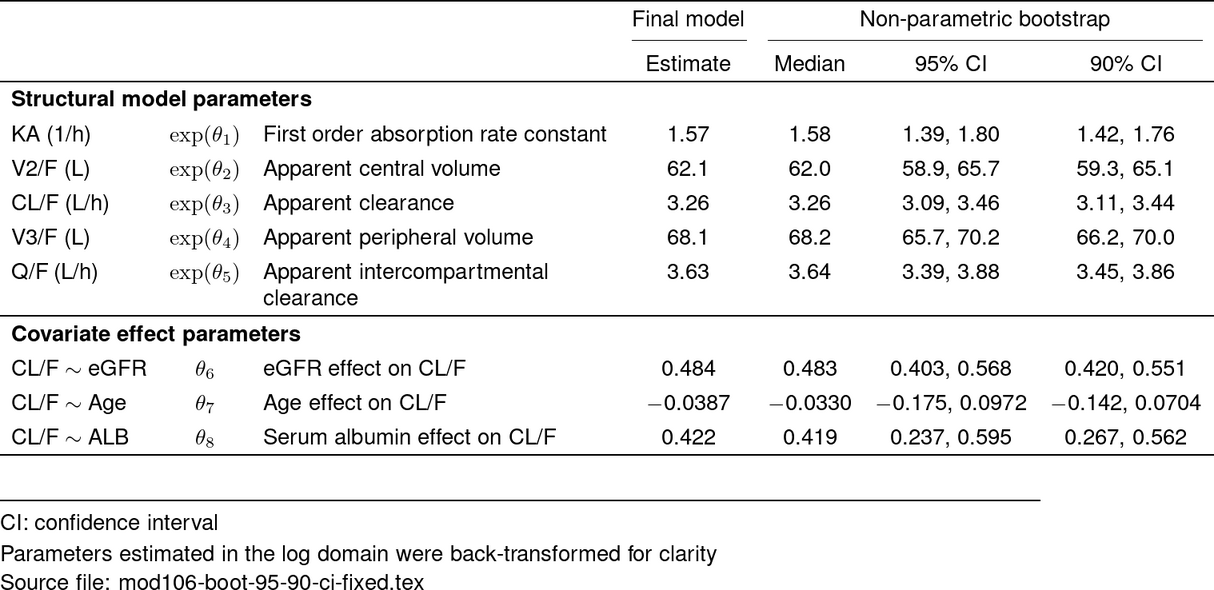

  stable(output_file = "deliv/mod106-boot-95-90-ci-fixed.tex")

tab_out <- stable_save_image(tab, format = "png")
st_image_show(tab_out, width = 0.8)
